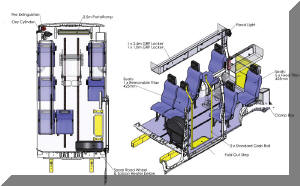

Click here for an exact layout diagram........LAYOUT
§ 8 seats including driver
§ Facilities for 2 wheelchairs

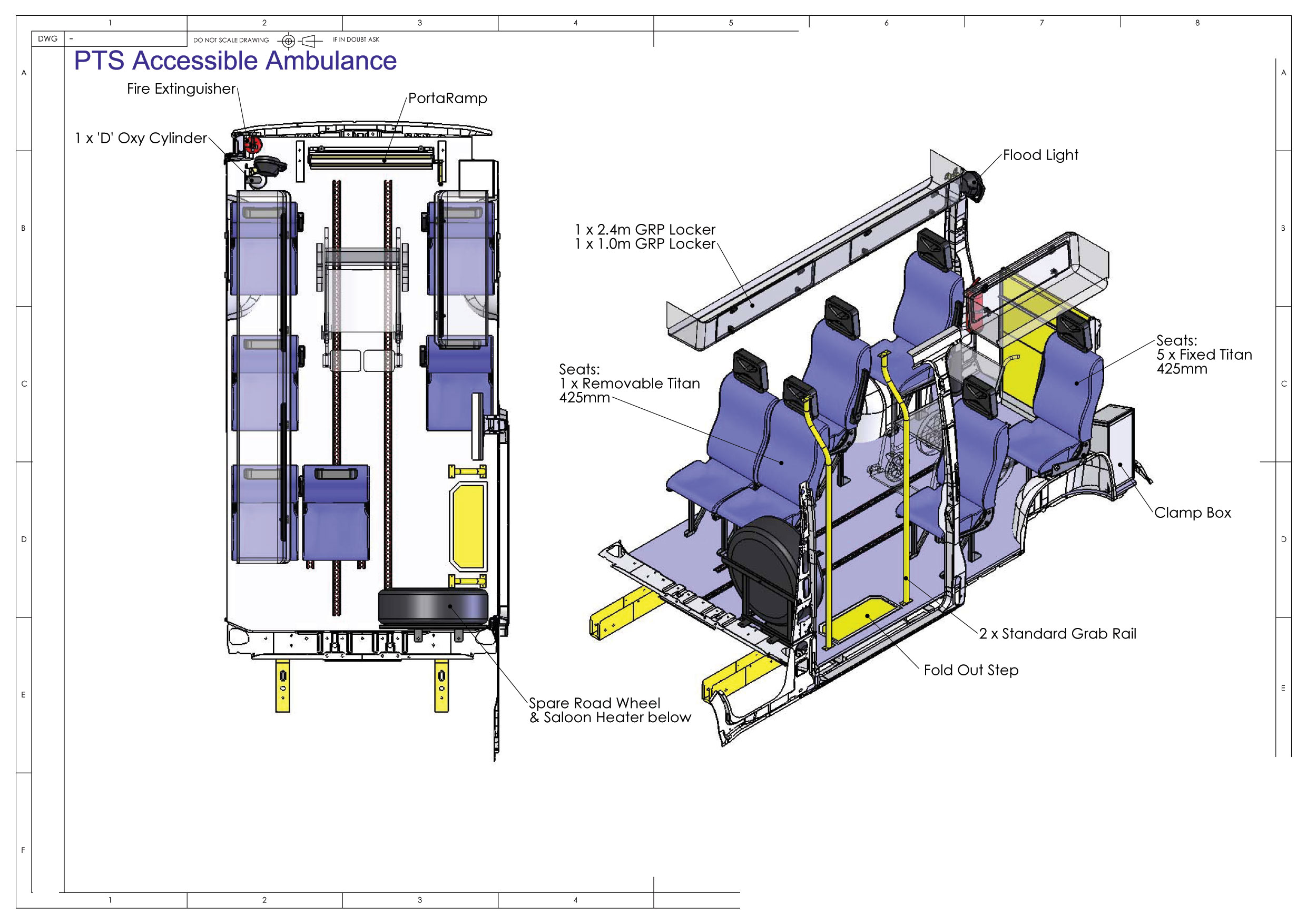

§ Diagram as attached
§ As standard manufacturers – Driver & Single Passenger seat
§ Full timber floor deck overlaid with non slip washable blue vinyl
§ All edges are sealed and capped as necessary
§ ABS cream coloured moulds
§ 4 x fixed window in tinted glass
§ 2 x fixed in tinted glass c/w top sliding sections
§ NS: - 1 x 1 metre cant rail locker with lockable door
§ OS: - 1 x 2.4 metre cant rail locker
§ Bump pads under cant rail lockers and above side & rear doors
§ 5 x single passenger seat to be fixed with padded headrest
§ 1 x single passenger seat to be removable (Unwin) with padded headrest
§ 6 x aisle side folding armrest
§ All seats are semi high back and trimmed in Ambla vinyl (colour TBA)
§ All seats 425mm wide
§ Fitted with lap/diagonal seat restraints “All Aged”
§ All belt anchorage’s comply with EEC76/115 M1 as amended

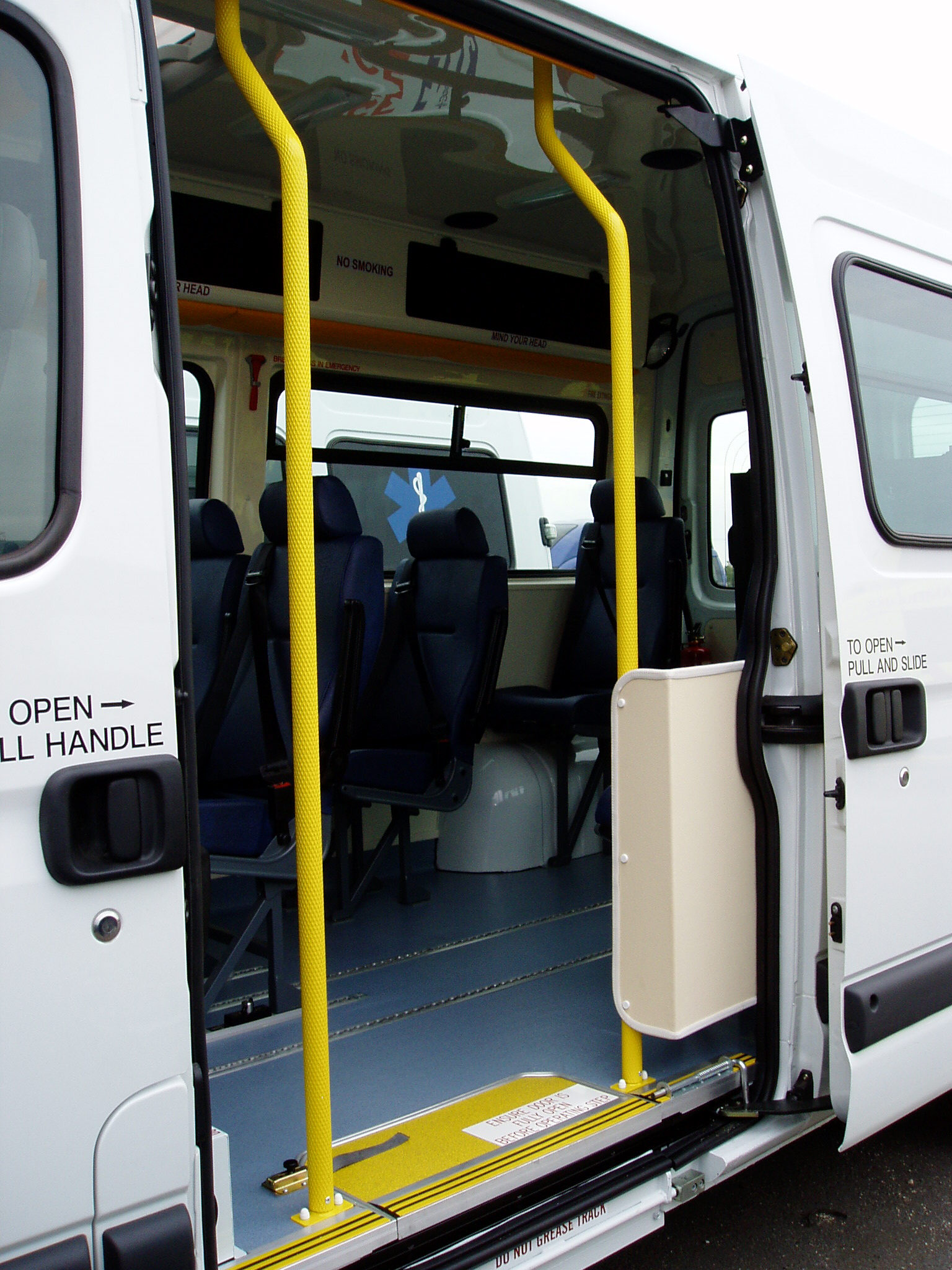

§ 2 x full height high visibility grab stanchion l/h & r/h
§ 1 x O&H manual fold out side step
§ Hi visibility edging
§ Modesty screen
§ Emergency exit
§ Portaramp 2.5 mtr double folding ramp
§ Heavy duty door stays
§ High level door release
§ 1 x Eberspacher independently powered saloon heater – location by sliding side door
§ 1 x Eberspacher air conditioning system to serve cab (2 roof vents) & saloon (overcab vents)
§ 1 x directional roof vent
§ Full saloon insulation
§ 1 x step light – ceiling mounted
§ 3 x flush fitting fluorescent interior lights – driver controlled
§ 1 x side & rear door ‘open’ warning buzzer - when engine on
§ 1 x O/S rear internal floodlight
§ 2 x saloon speakers
§ 1 x reversing bleeper with manual override
§ Spare wheel relocated behind double cab seat
§ 2 x fire extinguisher, 1 x first aid kit
§ Break glass hammer
§ Legal decals
§ Unwin equipment: 2 sets x 4 point tie down webbing restraints (Quattro rear, fixed tongue & buckle front), 2 x double inertia reel occupant harness
§ Recessed floor tracking c/w end caps (Unwin) for 2 wheelchairs (central).
§ Clamp & harness storage box at rear
§ Storage bracket for D size Oxygen at rear
§ 1 Red reflective ‘AMBULANCE’ decal for rear above door

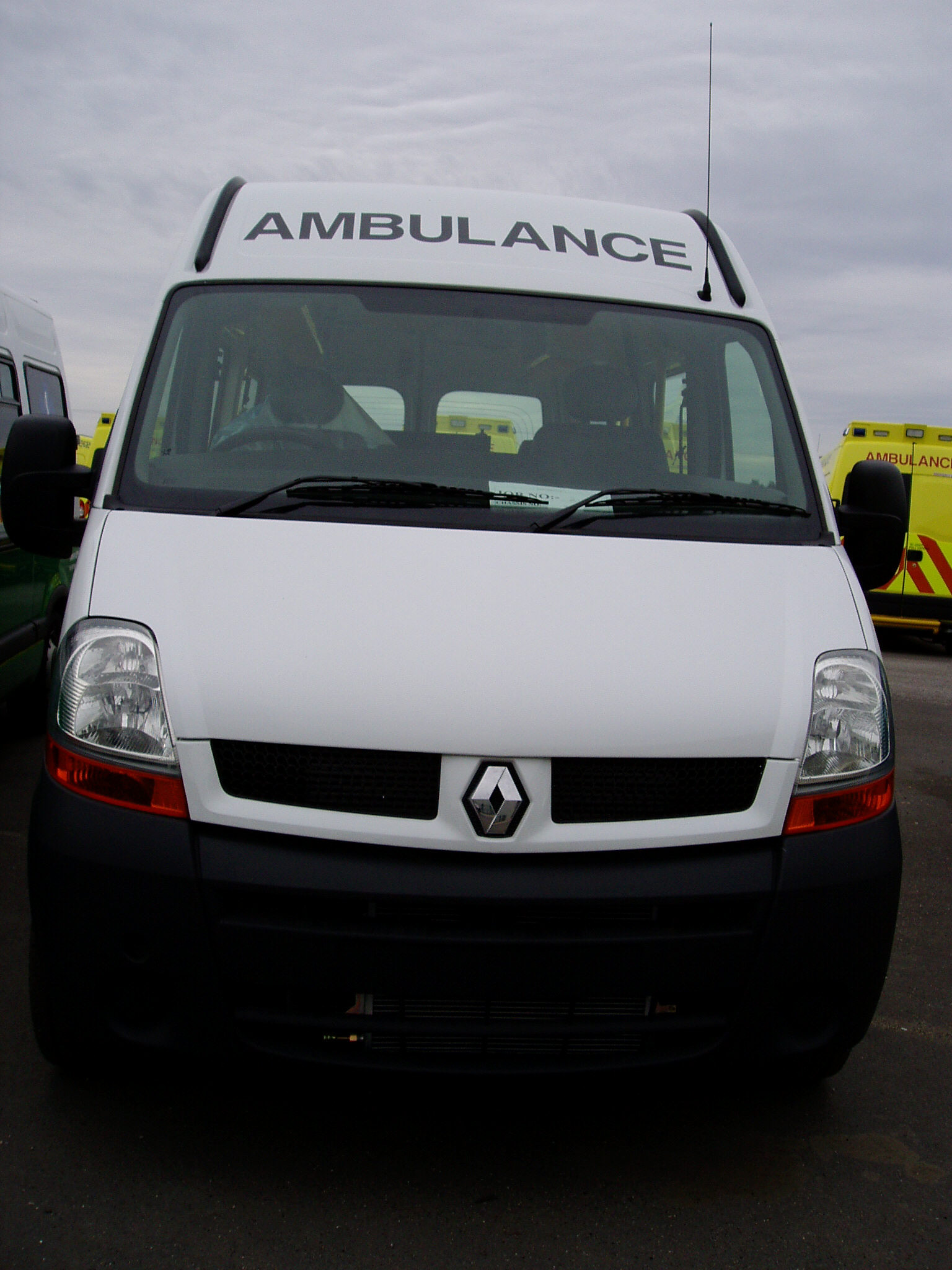

§ 1 Black reflective ‘AMBULANCE’ decal for front above windscreen
§ Green hazchem Compressed gas sign on rear door
§ Operational decals Unwin
§ Valet
§ Delivery
