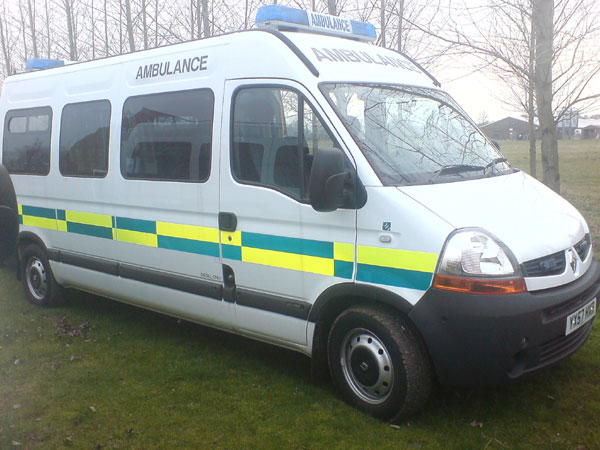

RENAULT MASTER PTS STRETCHER AMBULANCE
Base Vehicle Type: renault master lm35 – 2.5dci - 120bhp – window van with glazed rear doors - abs brakes – lowering air suspension - electric pack - solid colour white
|
|
|
|
§ 6 seats plus driver § Facilities for 2 wheelchairs & 1 Stretcher
|
|
|

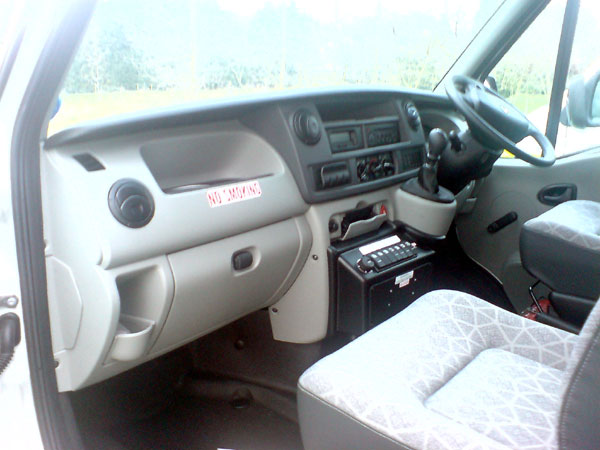

§ As standard manufacturers – Driver & Single Passenger seat § Overhead cab locker with door and rim lock
|
|
|
§ Full timber floor deck overlaid with non slip washable light blue vinyl § All edges are sealed and capped as necessary
|
|
|
§ Full ABS cream coloured moulds § 4 x fixed window in tinted glass (original factory fitted) § 2 x fixed in tinted glass c/w top sliding sections § 6 x Wipe down Black cassette blinds to be fitted to all saloon windows
|
|
|
§ ABS cream coloured moulds § NS: - 1 x 1 metre cant rail locker with lockable hinged door § OS: - 1 x 2.4 metre cant rail locker with 2 hinged doors § Yellow bump pads under cant rail locker and above side door and rear doors
|
|
|
§ ABS cream coloured moulds
|
|
|

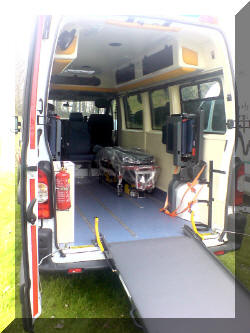

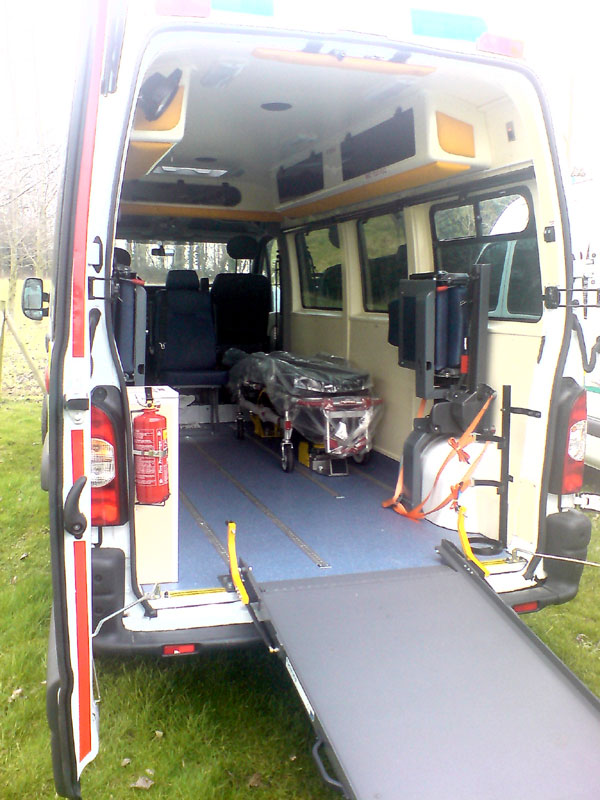

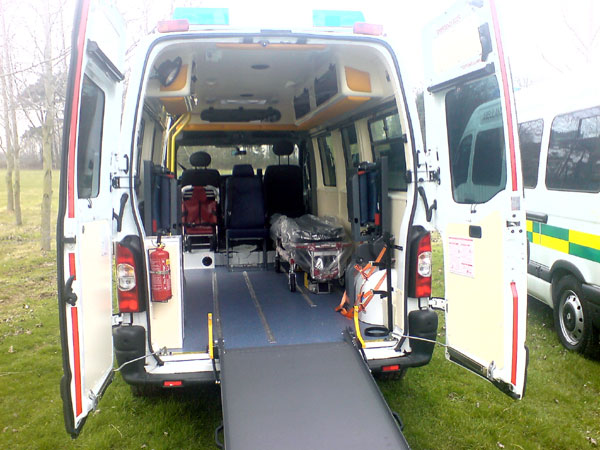

§ 1 x Ferno Falcon 6 stretcher (Black mattress) § CEN compliant mechanical floor locks. § 1 x dual passenger seat 450mm wide - tip/up rearward facing attendants seat to be fixed with 2 folding armrests & padded headrest § 3 x single passenger 450mm wide – tip/fold seat to be fixed with folding armrest & padded headrest § All seats are semi high back and trimmed in Ambla vinyl (colour TBA) § Fitted with lap/diagonal seat restraints “All Aged”. § All belt anchorage’s comply with EEC76/115 M1 and M3 as amended
|
|
|
§ 2 x full height high visibility grab stanchion l/h & r/h § 1 x AVS Manual cassette side step with warning light on dash § Hi visibility edging § Modesty screen
|
|
|

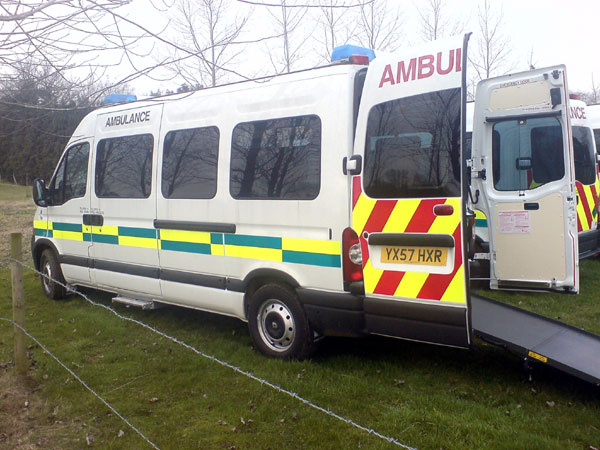

§ Emergency exit § Portaramp 2.5 mtr double folding ramp § Heavy duty door stays § High level door release
|
|
|
§ 1 x Eberspacher independently powered saloon heater– by side door § 1 x directional roof vent § Full saloon insulation
|
|
|
§ 1 x step light – ceiling mounted § 5 x flush fitting fluorescent interior lights – driver/saloon controlled with dim facility § 1 x side/rear door ‘open’ warning buzzer § 1 x rear floodlight internal N/S § 2 x saloon speakers § 1 x reversing bleeper with manual override § High level rear light clusters on roof at rear § 1 x 12 volt jack plug outlet in rear O/S corner § 1 x front light bar 48” Vision Alert, 12v, 2 x blue strobes and illuminated AMBULANCE sign (blue on white background). § 1 x rear light bar 48” Vision Alert, 12v, 2 x blue strobes and blank centre. § Yelp, wail two tone siren and speaker system § Alternating flashing headlights on main beam § 2 x grille blue LEDS |
|
|
§ Spare wheel supplied loose § Heavy duty mud flaps to front & rear § 2 x fire extinguisher, 1 x first aid kit § Legal decals § Driver’s night blind § Unwin equipment: 2 x 4 point tie down w/chair restraints, 2 x double inertia reel occupant harness, Recessed floor tracking c/w end caps for 2 w/chairs. § Clamp & harness storage box at N/S rear § Storage bracket for D size Oxygen at front O/S § Storage bracket for HX size Oxygen at rear with 2 piped outlets, 1 front of stretcher above window on O/S & 1 in between seats on pillar on N/S § Compact 2 carry chair § Storage for Compact 2 carry chair (suggest behind front passenger seat) § 2 ABS moulded glove box holders fitted forward of N/S cant rail locker. § W/chair stowage straps O/S rear, used when tip/fold seat in stowed position § 1 Red reflective ‘AMBULANCE’ decal for rear above door § 1 Black reflective ‘AMBULANCE’ decal for front above windscreen § 1 Black reflective ‘AMBULANCE’ decal each side above front window § 200mm wide band 3M diamond grade edge sealed Green/Yellow Battenburg markings on each side (reflective material) § Rear door chevrons in 3M diamond grade edge sealed Yellow and Red (reflective material) § Green hazchem Compressed gas sign on rear door § Operational decals Unwin
|
|
|
|
